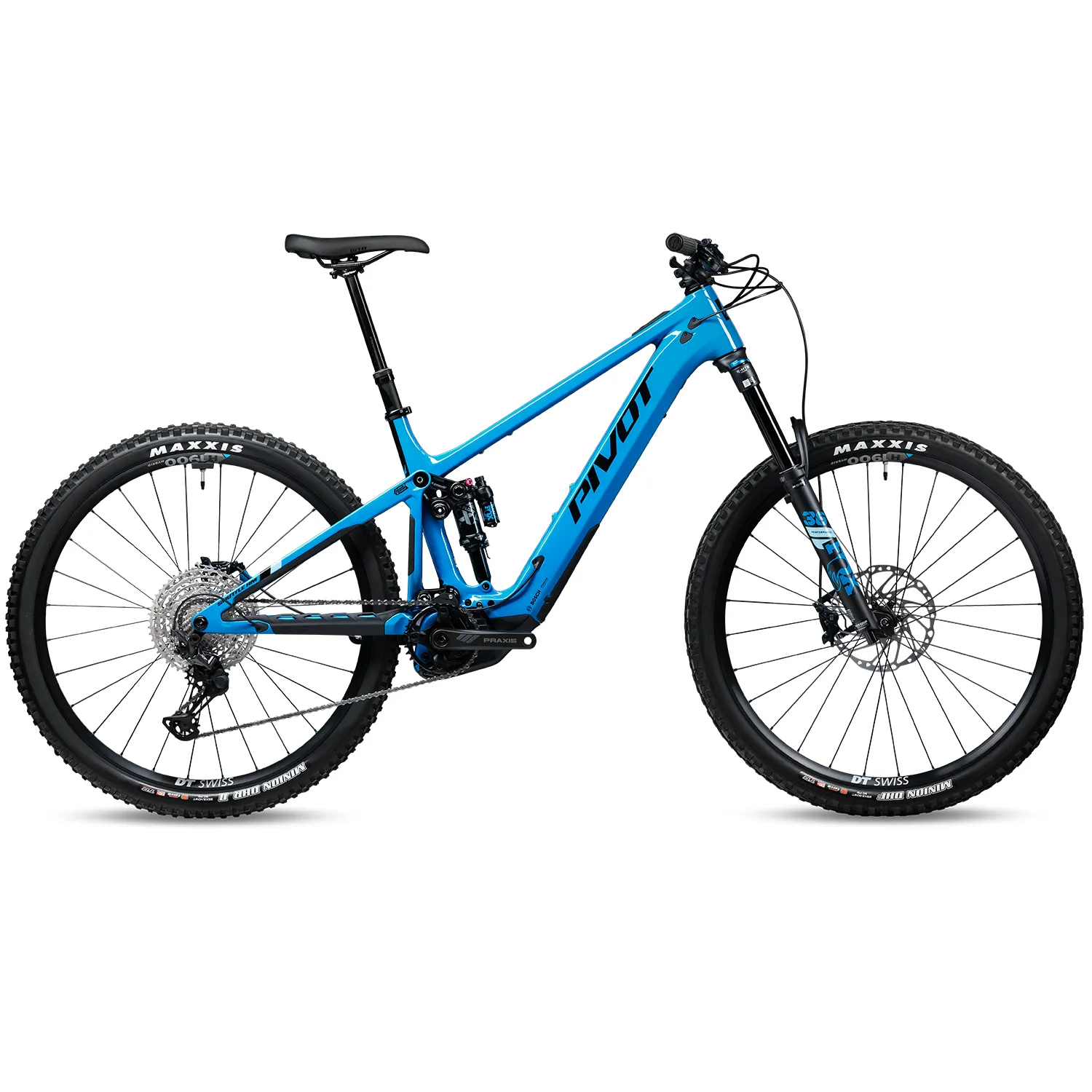

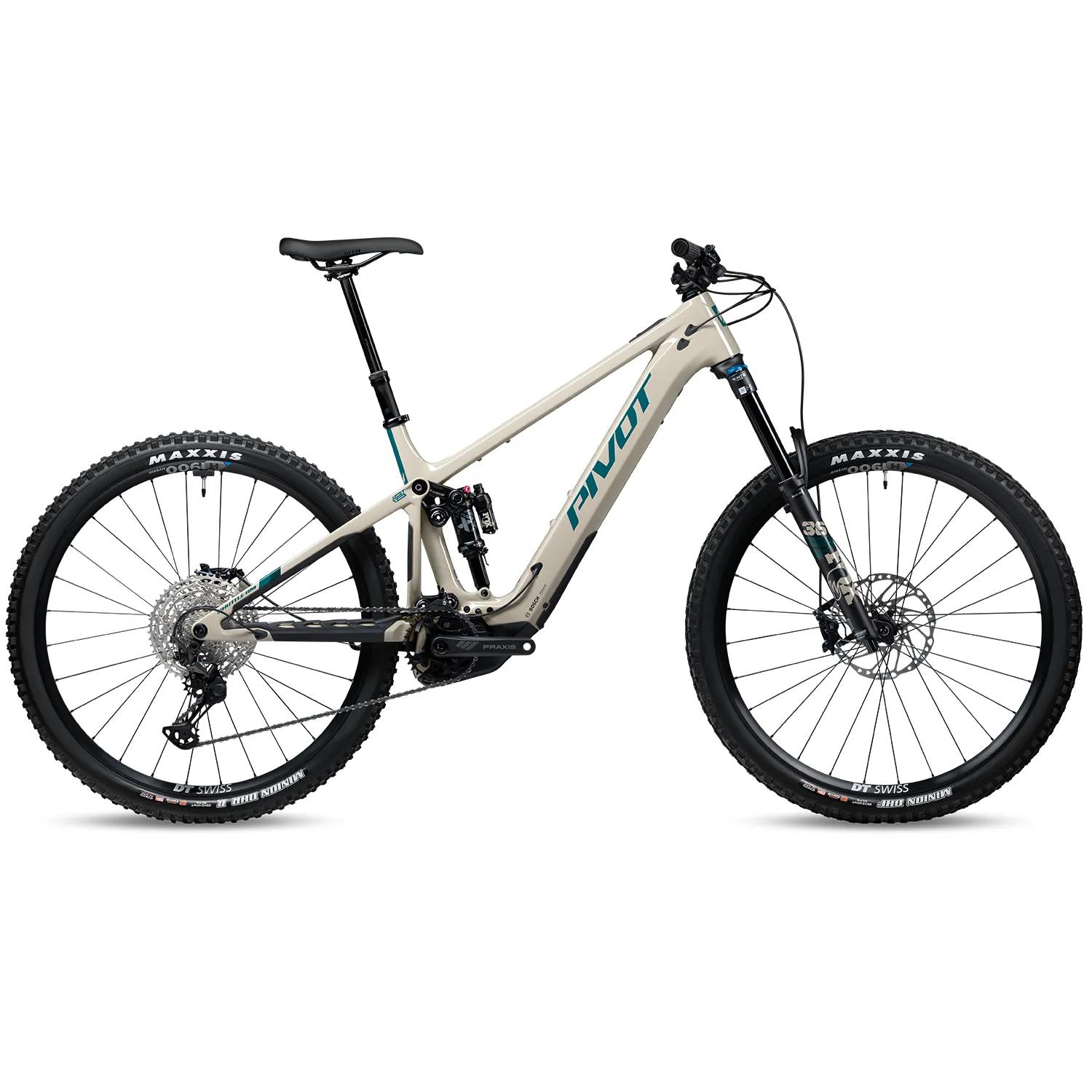

The Shuttle AM doesn’t shy away from touting itself as an all-mountain masterpiece that dominates the realm of e-mountain performance. This awe-inspiring e-bike strikes the perfect chord, delivering an unmatched blend of lightweight agility and long-travel prowess that hits the all-mountain sweet spot.
FEATURES
SPECS
FEATURES:
- Ultralight Hollow Core Carbon Frame.
- Powerfully Smooth Bosch Performance Line CX Motor, CX Race Motor on Team Builds.
- Long-range 750Wh Battery on Team and Pro Builds, 625Wh battery on Ride Builds.
- Bosch 250wh PowerMore Range Extender Compatible.
- Integrated Power and Mode Display.
- Wheel Mounted Speed Sensor.
- Wireless Bosch Remote.
- 160mm Fox 36 Grip 2 Factory Fork.
- Flip-Chip Upper Link Mount.
- Fully Mulletable and 27.5 ” Wheel Compatible.
- Pivot Dock Tool System Compatible.
- Water Bottle Clearance on All Sizes.
- Fox Factory Float X Shock with 148mm of Progressive Suspension Travel.
- Injection Molded Rubberized Frame Protection.
- Full Internal Routing with Pivot Cable Port System.
SPECS:
- Kit: Ride SLX/XT
- Frame: Shuttle AM
- Wheel Size: 29"
- Rear Shock: Fox Performance Float X
- Fork: Fox Performance E-MTB 36 29", 44mm offset, GRIP - 150mm
- Headset: Pivot precision sealed cartridge
- Rear Derailleur: Shimano XT M8100 SGS 12-speed
- Cassette: Shimano SLX M7100 10-51t
- Shifter: Shimano SLX M7100 ISPEC EV 12-speed
- Brakes: Shimano SLX M7120 4-piston
- Crankset: PRAXIS ETOR E-MTB 32t
- Handlebar: Phoenix Race Low Rise Aluminum -780mm
- Grips: Phoenix Factory lock-on
- Stem: Phoenix Team Enduro / Trail
- Seatpost: E13 Vario 150mm - 180mm (SM-MD), 180mm - 210mm (LG-XL)
- Saddle: Phoenix WTB Volt Race (medium width)
- Wheels: DT Swiss Hybrid H1900, 30mm - 29", 15x110 F/12x157 R
- Wheel Material: Alloy
- Front Tire: Maxxis Minion DHF 29" x 2.5" WT, TR, 3C, EXO , MAXXTERRA
- Rear Tire: Maxxis Minion DHRII 29" x 2.4" WT, TR, 3C, EXO , MAXXTERRAMaxxTerra
- Front Rotor: Galfer Rotor 203mm
- Rear Rotor: Galfer Rotor 180mm
- Chain: Shimano CN-M7100 12-speed
